Dark Fibre

Experience complete bandwidth and protocol flexibility – limited only by the type of equipment you connect at each end – with Dark Fibre.

  • High-performance fibre optic connectivity
  • Cost-effective with a flat monthly rate
  • Secure network exclusive to your business

Benefits of Voice Connect’s Dark Fibre

Almost unlimited bandwidth

Can carry virtually unlimited bandwidth, limited only by the equipment installed on each end of the service.

ISO 9001 Certified

Voice Connect operates an ISO 9001:2008 certified management system that assures the quality of installation, management and maintenance.

Complete control of your WAN

Complete bandwidth and network protocol flexibility – upgrade by changing your hardware and upstream configuration.

With Voice Connect’s Dark Fibre, you can:

  • Rapidly and cost-effectively upgrade without any additional carrier costs as your business requirements and technology evolve
  • Run 10Gbps Ethernet, FibreChannel (SAN) or multiple DWDM wavelengths across the service by connecting the corresponding hardware at each end
  • Benefit from improved reliability and significantly lower latency with dedicated glass when compared to traditional managed carrier services
  • Securely transfer data because the fibre is not shared with other customers
Specifications
Fibre Type Single Mode Optical Fibre (SMOF) conforming to G.652 spec
Acrylate Coating Diameter 245
Cladding Diameter 125.0 ± 0.7 μm
Cladding Non-Circularity ≤ 0.7%
Core/Cladding Concentricity Error ≤ 0.5 μm
Attenuation at 1310 nm 0.4dB/km maximum
Attenuation at 1550 nm 0.3dB/km maximum
Mode Field Diameter at 1310 nm 9.0 ± 0.4 μm
Cabled Cut-Off Wavelength ≤ 1260 nm
Minimum Zero Dispersion Wavelength 1302 nm
Maximum Zero Dispersion Wavelength 1322 nm
Dispersion Slope (Maximum at λ0) 0.092 ps/(nm2.km)
Dispersion Window 1285 – 1330 nm ≤ 3.5 ps/km.nm
Maximum Dispersion at 1550 nm ≤ 18 ps/km.nm
Proof Test Strain 1.0%

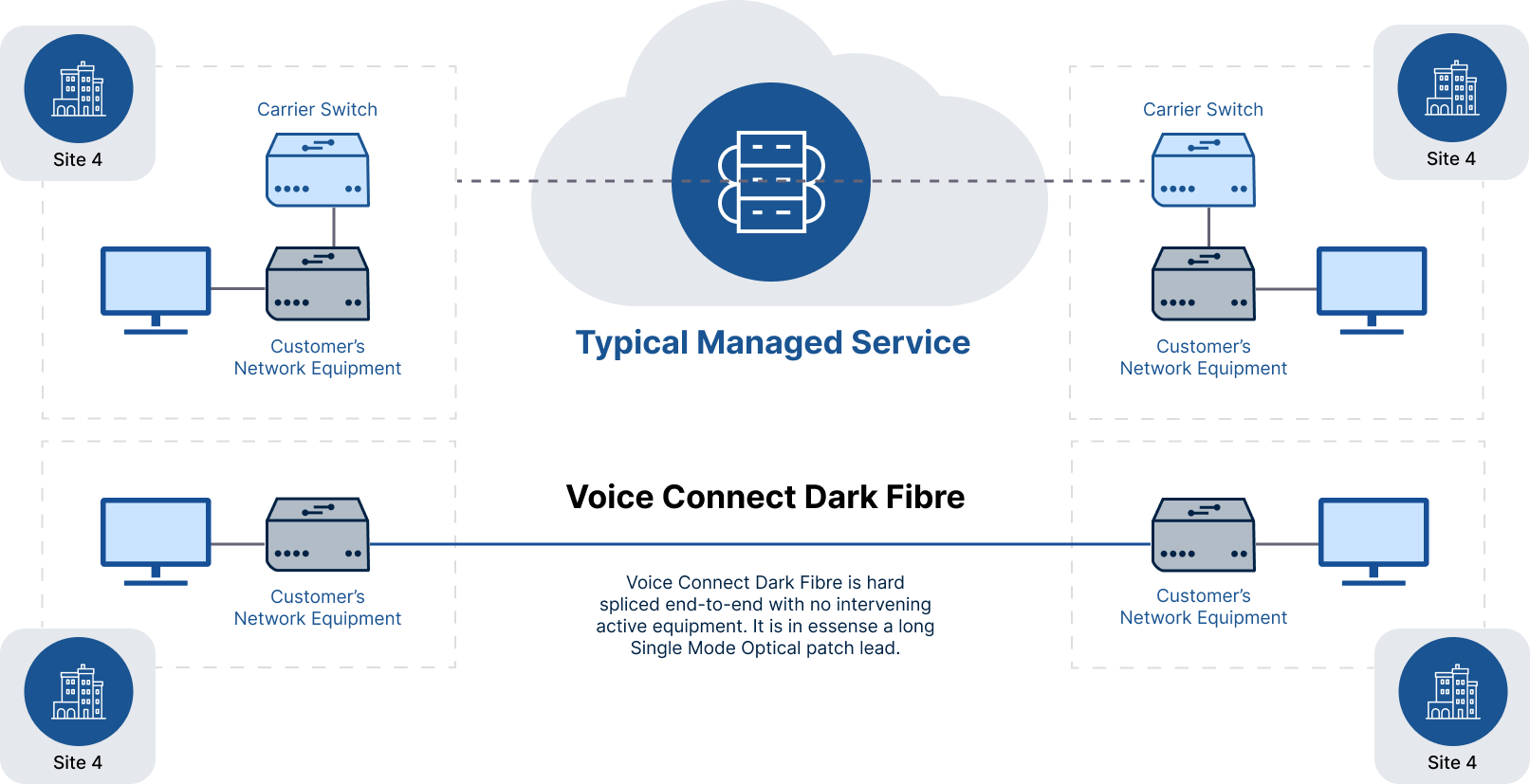

How it works

Interested? Start talking to our Dark Fibre experts
